Overview

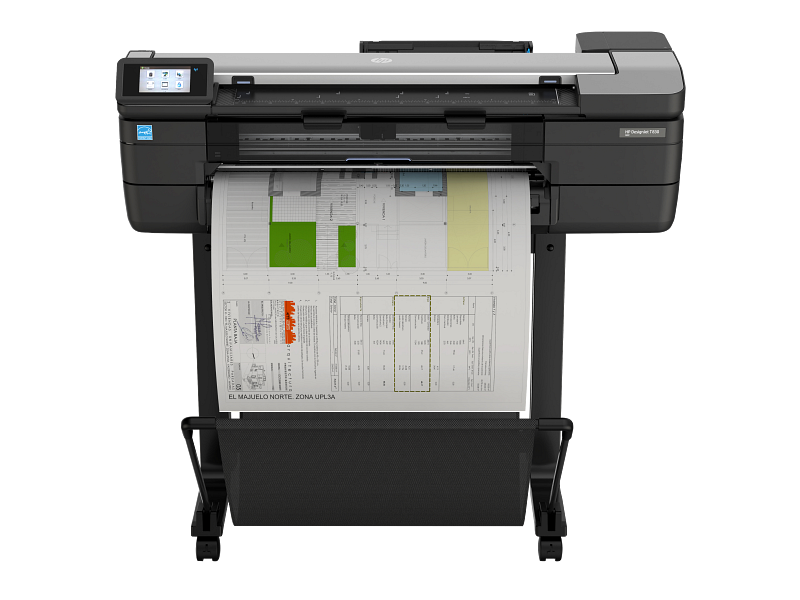

HP DesignJet T830 24-in Multifunction Printer (F9A28B)

Immediately update all your partners on project review results with the most compact large-format MFP. * Intuitive, convenient print/scan/copy and HP DesignJet print quality help you communicate effectively and move the project forward.

  • Print speed: 26 sec/page on A1, 81 A1 prints per hour *
  • Model size: 610 mm
  • Print quality color (best): Up to 2400 x 1200 optimized dpi
  • Power consumption: 35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
  • Print technology: HP Thermal Inkjet
  • Dimensions (W x D x H): 1098 x 629 x 1155 mm
  • Weight: 51 kg
HP DesignJet T830 24-in Multifunction Printer - Print: A1 plain paper line drawing: 26 sec/page, 81 A1 prints per hour (economode), Up to 2400 x 1200 optimized dpi (colour); Standard Memory: 1 GB; Connectivity: Gigabit Ethernet (1000Base-T); Wi-Fi 802.11b/g/n Dynamic security enabled printer This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at: http://www.hp.com/learn/ds
HP DesignJet T830 24-in Multifunction Printer (F9A28B)

CONVENIENT—Fast, agile, intuitive print/scan/copy

The most compact 24-in MFP * —with a sleek integrated design—is ideal for the office and construction job site. Print A1/D-size in 26 seconds. * Print easily with HP Click software, and print from s smartphone or tablet with HP Mobile Printing. *

TRUSTED—HP DesignJet quality and reliability

This reinforced, all-in-one printer with smart scanning handles all your document management from office to construction site. Get HP DesignJet print quality in half-size documents with the A4/A3 input tray. A redesigned stand reduces C02e. *

COMMUNICATION—Immediately share meeting results

Enhance communication with peers/partners. With an intuitive single touchscreen, you can scan, copy, and share drawings immediately. Scan/email from the front panel. Use HP Smart app * to email contacts or post to cloud from your smartphone, tablet.

Tech specs

  • Functions:

    Print, copy, scan

  • Ink drop:

    6 pl (C, M, Y); 12.6 pl (mK)

  • Ink types:

    Dye-based (C, M, Y); pigment-based (mK)

  • Finished output handling:

    Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter

  • Media types:

    Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)

  • Print cartridge/bottle volume delivered:

    HP 728 Ink Cartridge: matte black, cyan, magenta, yellow (300 ml); cyan, magenta, yellow (130 ml); matte black (69 ml); cyan, magenta, yellow (40 ml)

  • Print Cartridges/Bottle, Number:

    4 (C, M, Y, mK)

  • Connectivity, standard:

    Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n

View all tech specs

Accessories

HP 728B 300-ml Matte Black DesignJet Ink Cartridge

HP DesignJet 24-in Spindle

HP 728 130-ml Yellow DesignJet Ink Cartridge

HP 728B 130-ml Matte Black DesignJet Ink Cartridge

HP 729 DesignJet Printhead Replacement Kit

HP 728 130-ml Matte Black DesignJet Ink Cartridge
